  • 30mm thickness and 35mm thickness Anti-static Steel Floor Panels
  • 30mm thickness and 35mm thickness Anti-static Steel Floor Panels
  • 30mm thickness and 35mm thickness Anti-static Steel Floor Panels
30mm thickness and 35mm thickness Anti-static Steel Floor Panels 30mm thickness and 35mm thickness Anti-static Steel Floor Panels 30mm thickness and 35mm thickness Anti-static Steel Floor Panels

30mm thickness and 35mm thickness Anti-static Steel Floor Panels

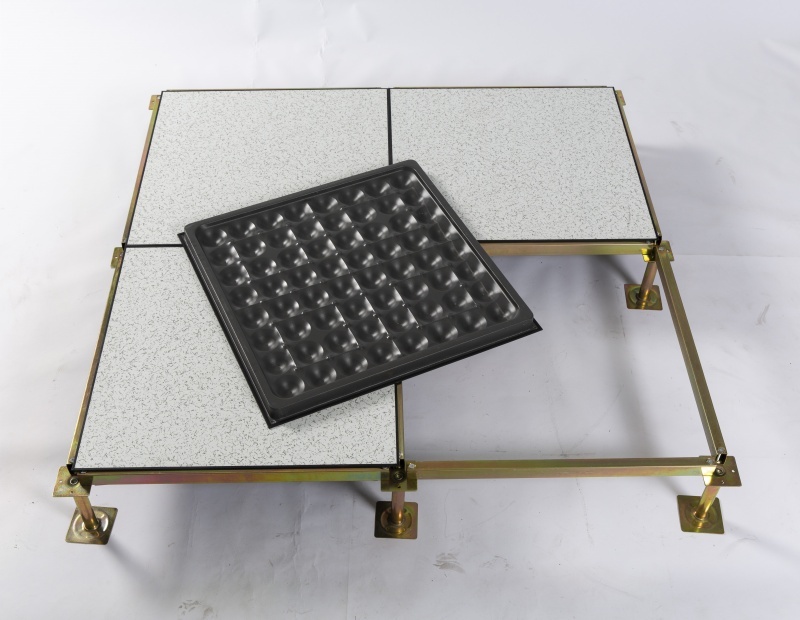

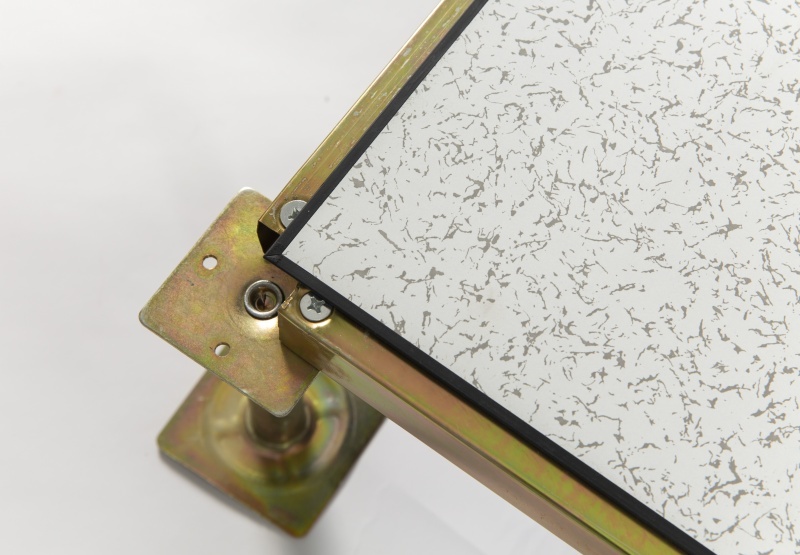

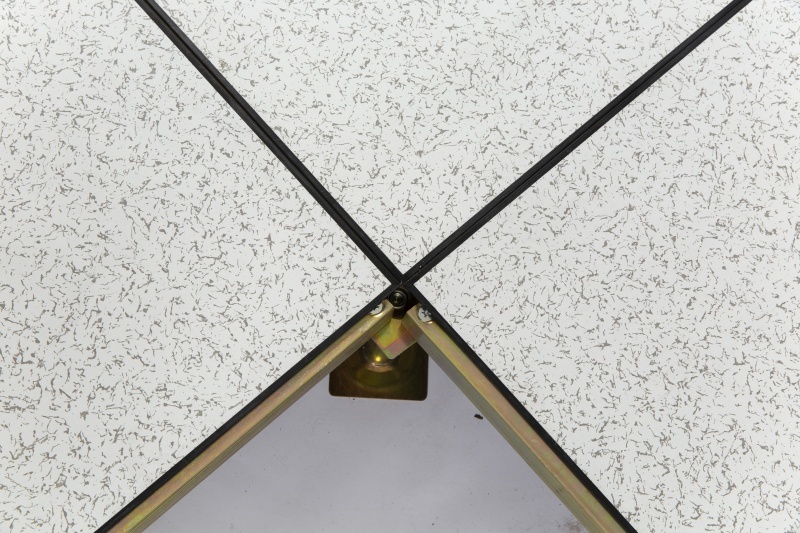

Anti-static All Steel Floor Panels are widely used in computer rooms. This access floor system has excellent anti-static performance. It can eliminate the static electricity produced by the computers when they are working and the stability of the computer will be maintained. Thus the life span of the computers will be prolonged. Meanwhile, raised floor panels will greatly facilitate the whole installation. The panels can be put directly on the rigid network system, which is made up of pedestals and stringers. The panels’ sizes are controlled with great precision, which assures the free interchange between panels. With convenient wire layout and various outlet boxes, the system can optimize the cabling in computer rooms.

Steel Cementitious Panel (Anti-Static Laminate / PVC etc. on Top) Raised Floor
Feature:

- Used for computer room, data center and communication center.
- Excellent rolling load & ultimate load performance.
- Light weight cement makes panels solid and quite.
- Black / grey epoxy paint finish for long time protection.
- Class A flame spread and smoke development rating.
- Convenient installation supplies an excellent solution for office integrity, wiring and data cable service

type



Size(mm)

Static Loading

DynamicLoading

Ultimate Load







ConcentratedLoad

Uniform Load

Rolling Load

Impact Load









(N)



(N/m)

10.000passes

FS700



600x600x30

3115



14300

2300



450

9950





600x600x35

















610x610x35













FS800



600x600x35

3560



16400

2450



450

11200







610x610x35

















FS1000



600x600x35

4450



24500

3760



680

14500







610x610x35

















FS1250



600x600x35

5560



35050

4650



680

18360







610x610x35

















FS1500



600x600x35

6675



39280

5760



680

22170







610x610x35

















FS2000



600x600x35

8900



49100

6250



800

29420







610x610x35

















Flatness



<=0.5mm















Vertical



<=0.3mm















System Resistor



1X10^6Ω-1X10^10Ω
