Anti-static Full Steel Floor Panels
- Product No.：Anti-static Full Steel Floor Panels

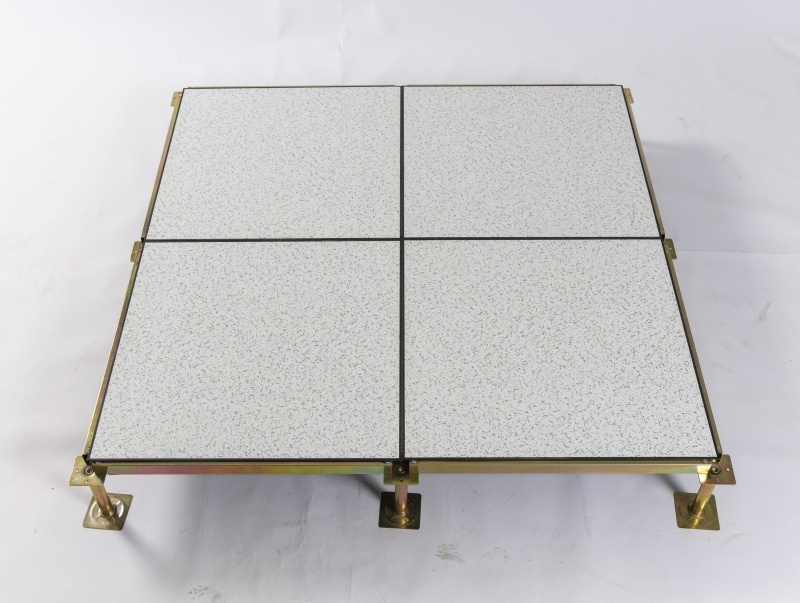

Anti-static All Steel Floor Panels are widely used in computer rooms. This access floor system has excellent anti-static performance. It can eliminate the static electricity produced by the computers when they are working and the stability of the computer will be maintained. Thus the life span of the computers will be prolonged. Meanwhile, raised floor panels will greatly facilitate the whole installation. The panels can be put directly on the rigid network system, which is made up of pedestals and stringers. The panels’ sizes are controlled with great precision, which assures the free interchange between panels. With convenient wire layout and various outlet boxes, the system can optimize the cabling in computer rooms.
Steel Cementitious Panel (Anti-Static Laminate / PVC etc. on Top) Raised Floor
Steel Cementitious Panel (Anti-Static Laminate / PVC etc. on Top) Raised Floor
Feature:
- Used for computer room, data center and communication center.
- Excellent rolling load & ultimate load performance.
- Light weight cement makes panels solid and quite.
- Black / grey epoxy paint finish for long time protection.
- Class A flame spread and smoke development rating.
- Convenient installation supplies an excellent solution for office integrity, wiring and data cable service
- Excellent rolling load & ultimate load performance.
- Light weight cement makes panels solid and quite.
- Black / grey epoxy paint finish for long time protection.
- Class A flame spread and smoke development rating.
- Convenient installation supplies an excellent solution for office integrity, wiring and data cable service
|
type |
|
Size(mm) |
Static Loading |
DynamicLoading |
Ultimate Load |
|||||
|
|
|
|
ConcentratedLoad |
Uniform Load |
Rolling Load |
Impact Load |
|
|||
|
|
|
|
(N) |
|
(N/m) |
10.000passes |
||||
|
FS700 |
|
600x600x30 |
3115 |
|
14300 |
2300 |
|
450 |
9950 |
|
|
|
|
600x600x35 |
|
|
|
|
|
|
||
|
|
|
610x610x35 |
|
|
|
|
|
|
||
|
FS800 |
|
600x600x35 |
3560 |
|
16400 |
2450 |
|
450 |
11200 |
|
|
|
|
610x610x35 |
|
|
|
|
|
|
|
|
|
FS1000 |
|
600x600x35 |
4450 |
|
24500 |
3760 |
|
680 |
14500 |
|
|
|
|
610x610x35 |
|
|
|
|
|
|
|
|
|
FS1250 |
|
600x600x35 |
5560 |
|
35050 |
4650 |
|
680 |
18360 |
|
|
|
|
610x610x35 |
|
|
|
|
|
|
|
|
|
FS1500 |
|
600x600x35 |
6675 |
|
39280 |
5760 |
|
680 |
22170 |
|
|
|
|
610x610x35 |
|
|
|
|
|
|
|
|
|
FS2000 |
|
600x600x35 |
8900 |
|
49100 |
6250 |
|
800 |
29420 |
|
|
|
|
610x610x35 |
|
|
|
|
|
|
|
|
|
Flatness |
|
<=0.5mm |
|
|
|
|
|
|
|
|
|
Vertical |
|
<=0.3mm |
|
|
|
|
|
|
|
|
|
System Resistor |
|
1X10^6Ω-1X10^10Ω |
|
|
|
|
|
|||
Previous Product：30mm thickness and 35mm thickness Anti-static Steel Floor Panels
