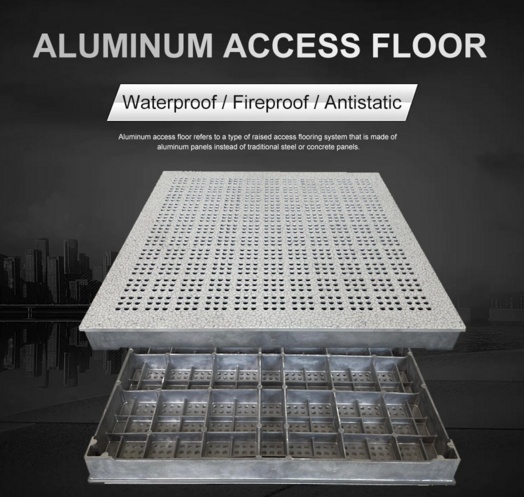

Made of high strength and pure die-cast aluminum as the base material, die-cast by a large-scale hydraulic press and precision machined, the aluminum raised floor panels to have superior mechanic strength performance. Aluminum Raised Floor can be epoxy-sprayed or nickel-chromium plated as needed and the upper surface is pasted with1.0-2.0mm Anti-static Laminate HPL,2.0-3.0mm PVC,10mm Ceramic,marble,granite,nature wood to achieve the excellent performance of light gloss, anti-corrosion, and anti-wear.
Characteristics
- Patent design with high dimensional accuracy
- Light weight and excellent loading capacity
- Conductive and static dissipative coverings and coatings
- Contains no ferrous materials to disrupt magnetic fields
- Excellent rolling load performance
- Die cast aluminum panels meet call A1 fire rating
- Good performance of waterproof
- Pollution and radiation free
- Recyclable and economic system
- Various pedestals and structure system
Product Parameters
| Type: |
FS662-2000 |
| Finished Floor Height: |
100-2000mm |
| Panel Size: |
600*600mm |
| Panel Thickness: |
solid Panel/ Perforated panel |
| Finish Covering: |
1.0-2.0mm Anti-static Laminate HPL,2.0-3.0mm PVC,10mm
cermic,Marble,Granite,Nature Wood and etc. |
| Edge trim: |
Trimless /Nomal trim |
| corner lock hole |
With/ Without |
| installation: |
With stringer system |
Application

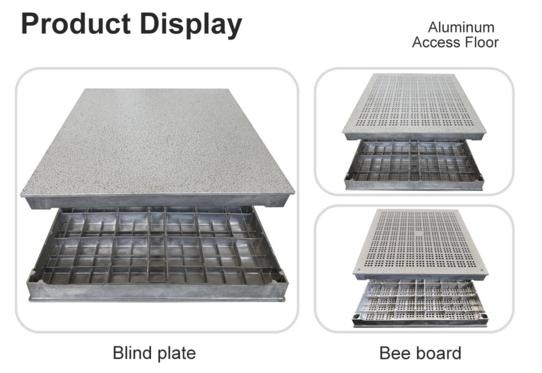

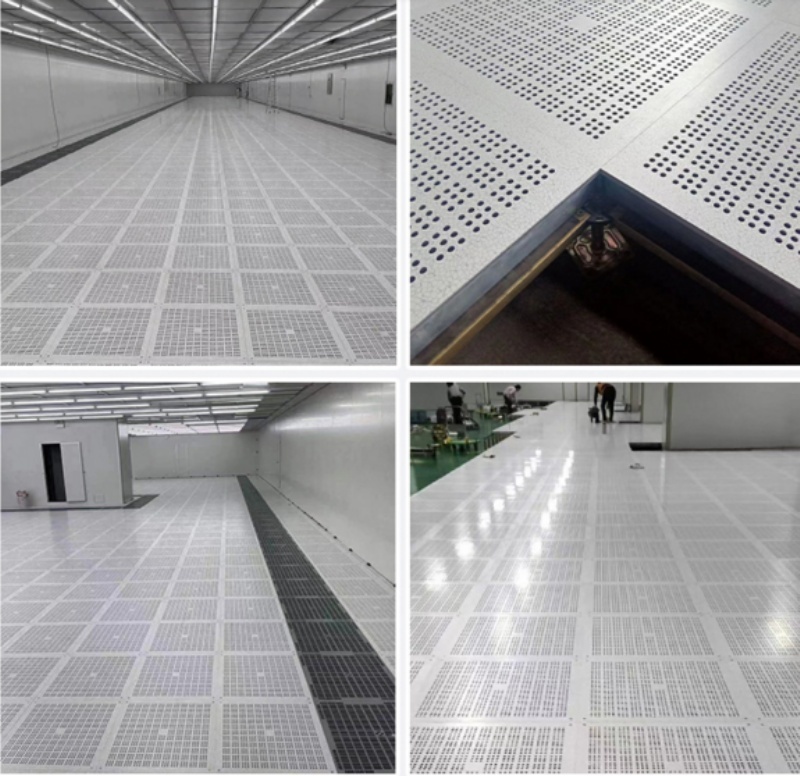

Our die-cast aluminum raised floor panels are divided into a perforated type and blind plate type (without venting holes), are widely used in data centers, computer rooms, educational facilities, the casinos, clean rooms, libraries, and specialized areas.
