Anti Static Calcium Sulphate Floor

Product No.：Anti Static Calcium Sulphate Floor
Online Inquiry

Information

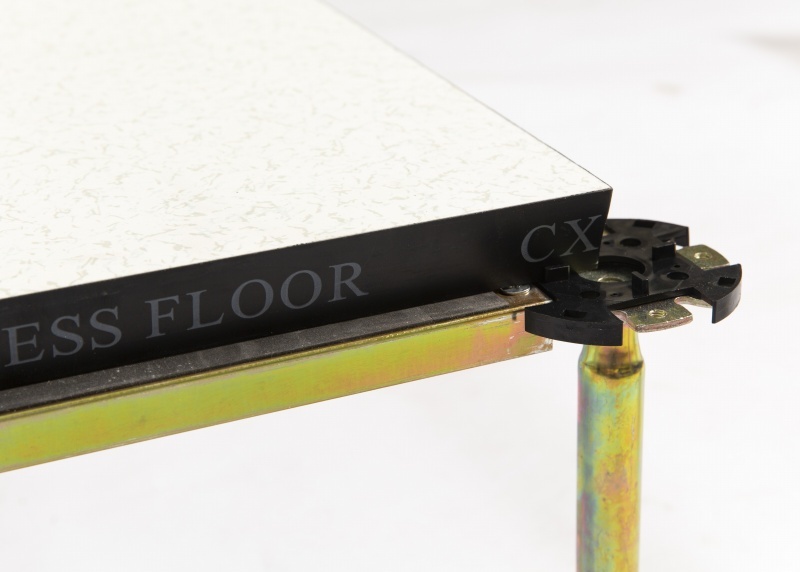

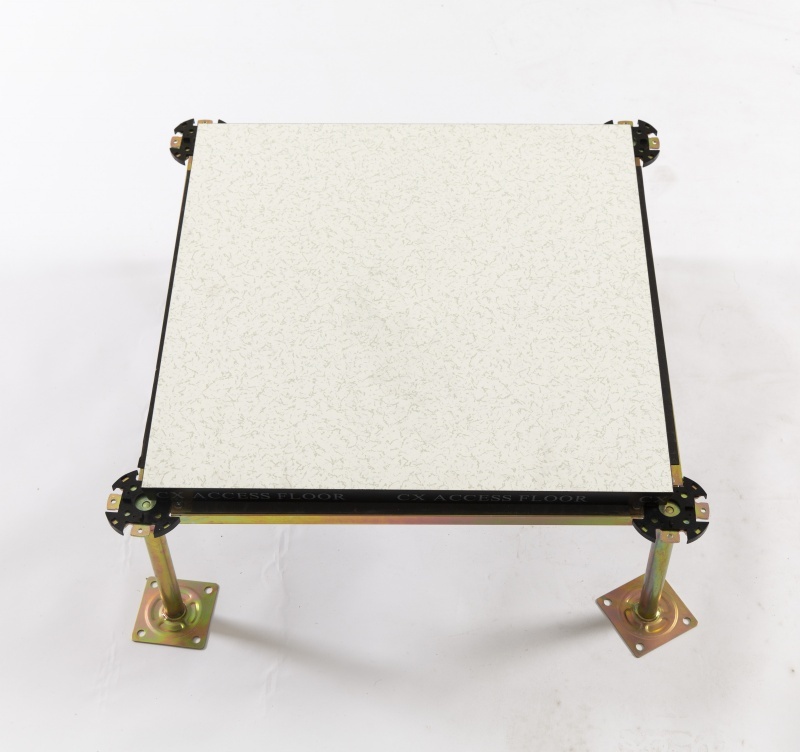

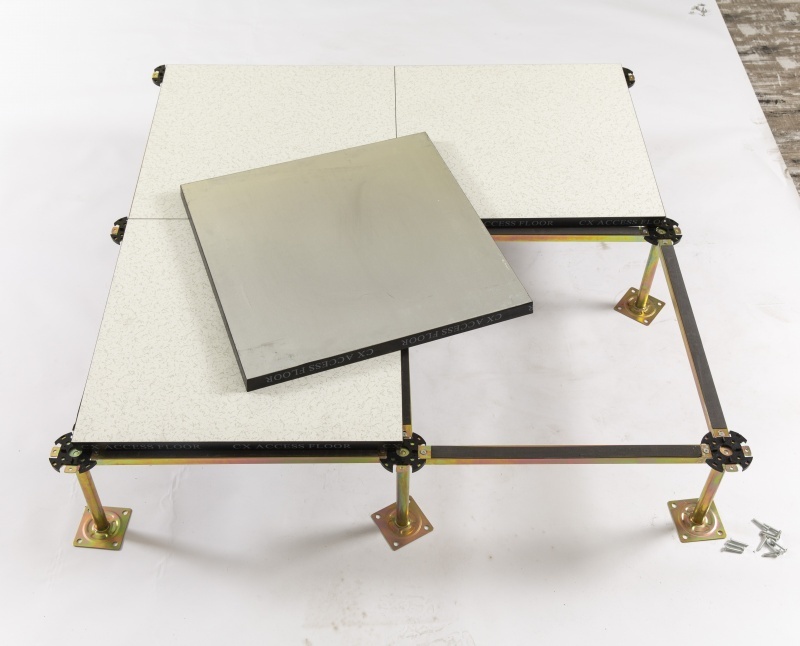

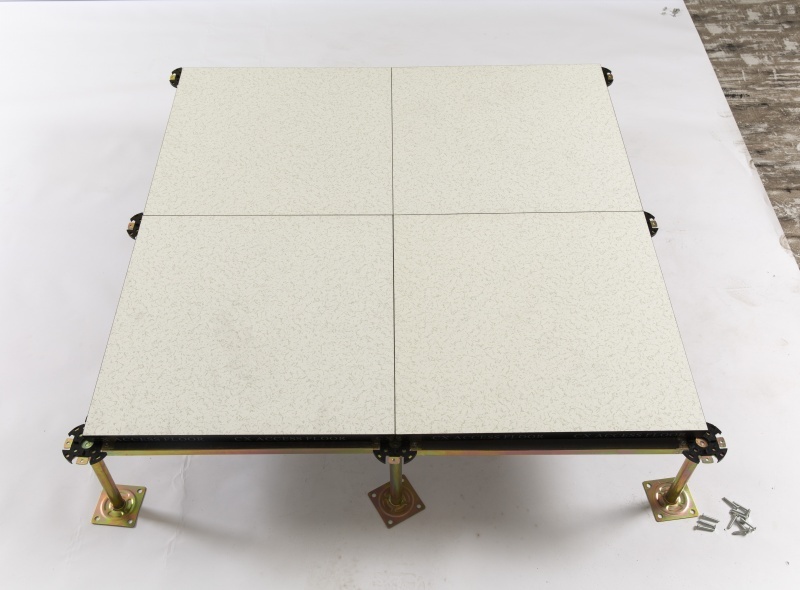

Anti-static calcium sulphate raised access floor consists of high-strength calcium sulphate core. steel sheet is bonded to the bottom of core.HPL,PVC or anti-static ceramic tiles is bonded to the top of core.PVC edging strip is glued to each edge of the panel,avoiding common occurrences of floor bubbling,and unglued phenomena and etc.

Characteristics

Good loading capacity and conductivity

Good sealing and water-proof

Fire-proof , antisepsis and sound insulation

Exceptionally high rolling load capacity

Improved acoustic properties

Type

size

Rolling load

Uniform load

Ultimate load

Concentrated load

10PAss

10KPAAASs

2.5mm deflection|

2.0mm deflection

FS1000

600*600mm
30-40mm thick

3.56KN

2.67KN

5000LB/m²

22.22KN/m²

3260LB

14.50KN

1000LB

4.45KN

800LB

3.56KN

FS1250

4.45KN

3.56KN

6250LB/m²

27.78KNm²

4130LB

18.36KN

1250LB

5.56KN

1000LB

4.45KN

FS1500

5.56KN

4.45KN

7500LB/m²

33.34KN/m²

5000LB

22.17KN

1500LB

6.68KN

1250LB

5.56KN

FS2000

6.68KN

5.56KN

10000LB/m²

44.45KN/m²

6620LB

29.42KN

2000LB

8.89KN

1500LB

6.68KN

FS2500

8.89KN

6.68KN

13000LB/m²

57.79KN/m²

8400LB

37.34KN

2500LB

11.11KN

2000LB

8.89KN

Previous Product：Encapsulated Calcium Sulphate Raised Floor Panel

Inquiry

Related Products

Encapsulated Calcium Sulphate Raised Floor Panel

Products Category

Contact Us

Name: Tan

Tel: +8613921032684

E-mail: info@cxfloors.cn

WeChat: herdiese

Add: Cuibei Industry Zone, Changzhou, Jiangsu,China

Type	size	Rolling load		Uniform load		Ultimate load		Concentrated load
Type	size	10PAss	10KPAAASs	Uniform load		Ultimate load		2.5mm deflection\|		2.0mm deflection
FS1000	600*600mm 30-40mm thick	3.56KN	2.67KN	5000LB/m²	22.22KN/m²	3260LB	14.50KN	1000LB	4.45KN	800LB	3.56KN
FS1250		4.45KN	3.56KN	6250LB/m²	27.78KNm²	4130LB	18.36KN	1250LB	5.56KN	1000LB	4.45KN
FS1500		5.56KN	4.45KN	7500LB/m²	33.34KN/m²	5000LB	22.17KN	1500LB	6.68KN	1250LB	5.56KN
FS2000		6.68KN	5.56KN	10000LB/m²	44.45KN/m²	6620LB	29.42KN	2000LB	8.89KN	1500LB	6.68KN
FS2500		8.89KN	6.68KN	13000LB/m²	57.79KN/m²	8400LB	37.34KN	2500LB	11.11KN	2000LB	8.89KN
