Information
All steel perforated raised flooring is compatible with any bolted stringer raised floor systems and offer between 15% to 75% free airflow rate. Our all-steel perforated raised floor provides superior cooling for managing heat loads in mission-critical facilities to be available with top surface adjustable damper and  it is the same size and finish as the solid panel, so they are ideal for High-Pressure Laminate, vinyl and rubber access floor coverings are available as well, Vinyl floor coverings interchangeable with wood core panel/calcium sulphate perforated panel/tile.
Principle of Use
The combination of the perforated all steel raised floor tile and the replacement air conditioner form a cold air flow area, and the electrostatic floor is paved to form a bottom air supply passage, then air is blown in the passage between the machine room cabinets.

Ventilation Rate:	15%-75%
Materials:	steel,Aluminum
Panel size:	60*600mm and other special size
Edge Trim Type:	Formal trim,Trimless
Finish Covering:	Bare with powder coated,1.0-2.0mm Anti-static Laminate HPL, 2.0-3.0mm PVC,10mm Cermic and etc.
Damper:	Available
installation:	With stringer system

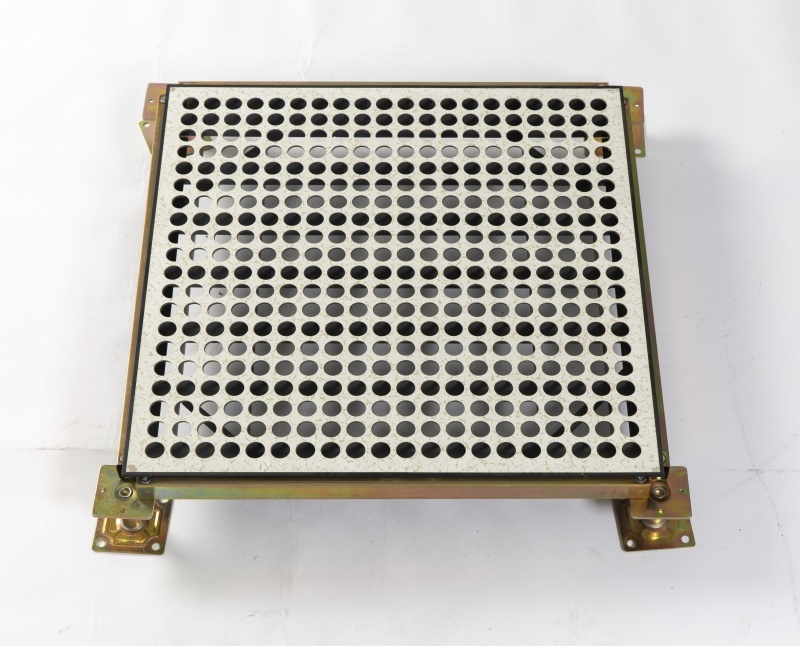

 All-Steel Perforated Raised Floor Details

Made by high-precision stamping machinery

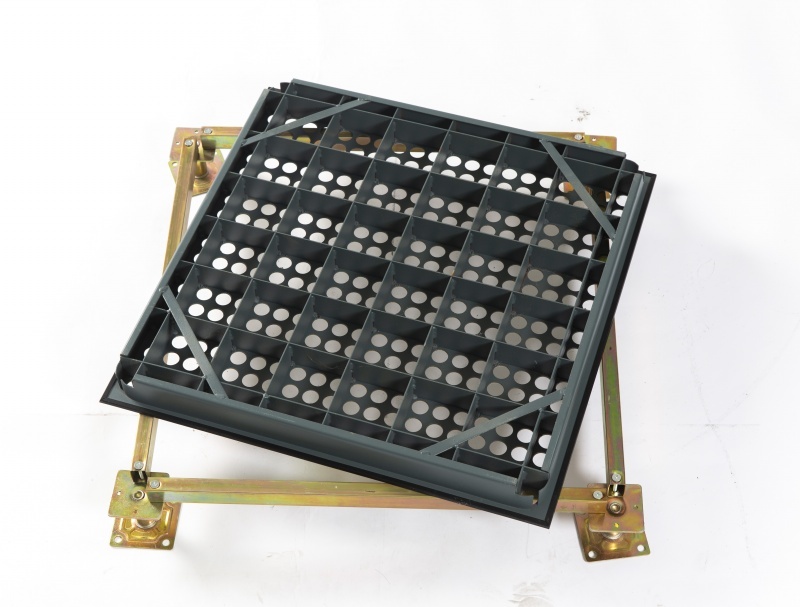

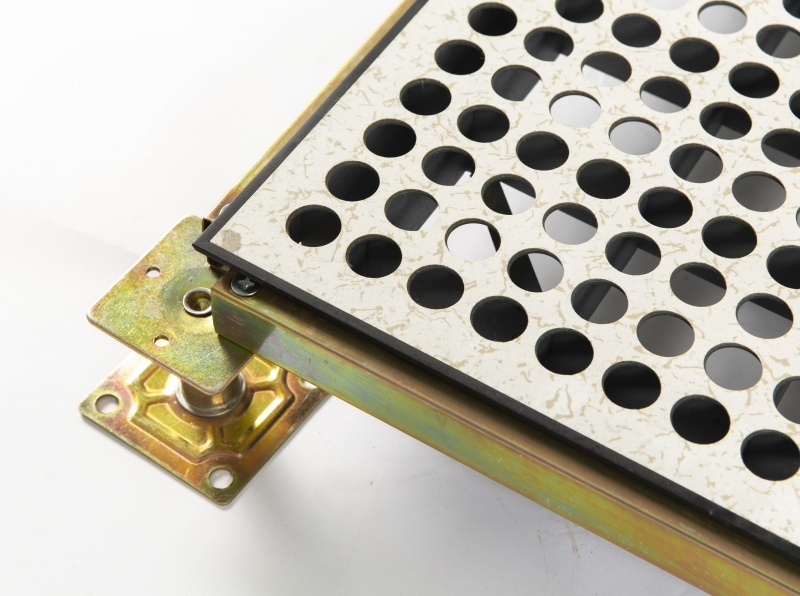

This system composed by hollow panel, stringer, pedestal and screws
Covering of Panel:	HPL(High press laminates), PVC
Size:	600*600*35 mm
The height of pedestal :	10 CM to 150 CM
Weight of Panel:	About 9 -13 kg
Ventilation rate for option:	15%-75%

Loading Capacity

Perforated access floor(Slze:600mm*600*35mm)
TYPE	Concentrated Load			lmpact Load	ultimate Load	uniform Load	Rolling Load
	LB	N	KG	N	N	N/m2	10passes	10000passes
FS800	≥800	≥3650	≥363	≥600	≥10700	≥7000	≥2878	≥2230
FS1000	≥1000	≥4450	≥454	≥670	≥13350	≥23000	≥3611	≥3012
FS1250	≥1250	≥5563	≥568	≥850	≥16680	≥3300	≥4511	≥3600




Application

All Steel Perforated Raised Floor combines with the characteristics and features of all steel access floor and perforated raised floor, it can be widely used in typical data centers, computer room, telecommunication rooms, electronic assembly areas, general purpose equipment applications of access floor and more areas for air-conditioning of machinery.
