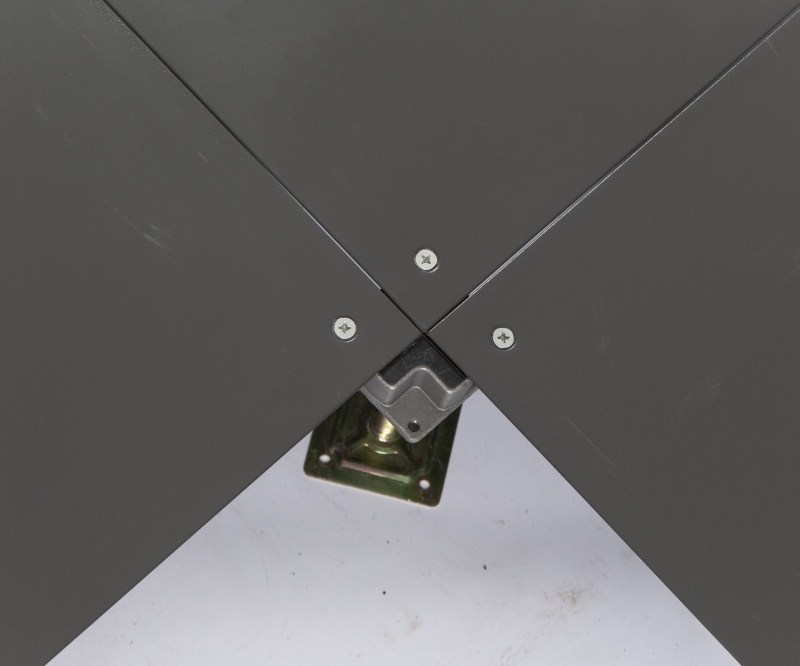

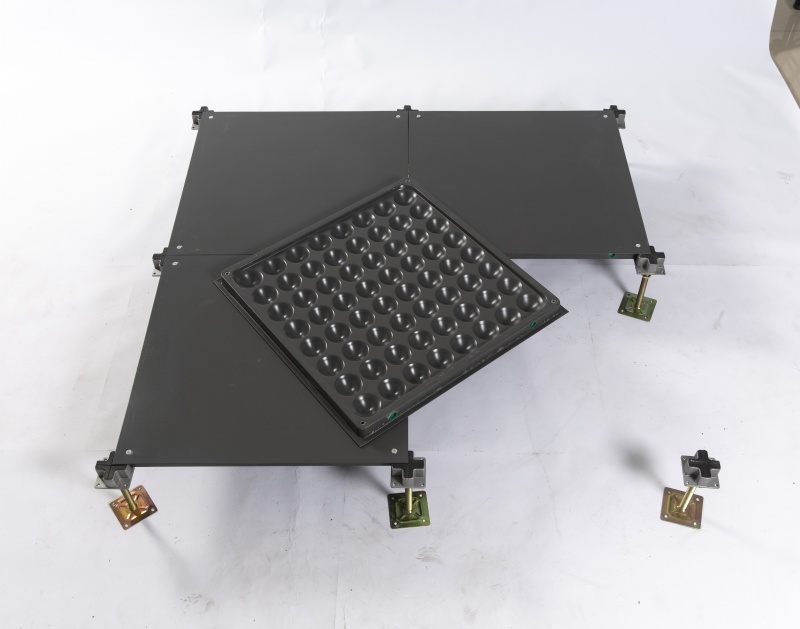

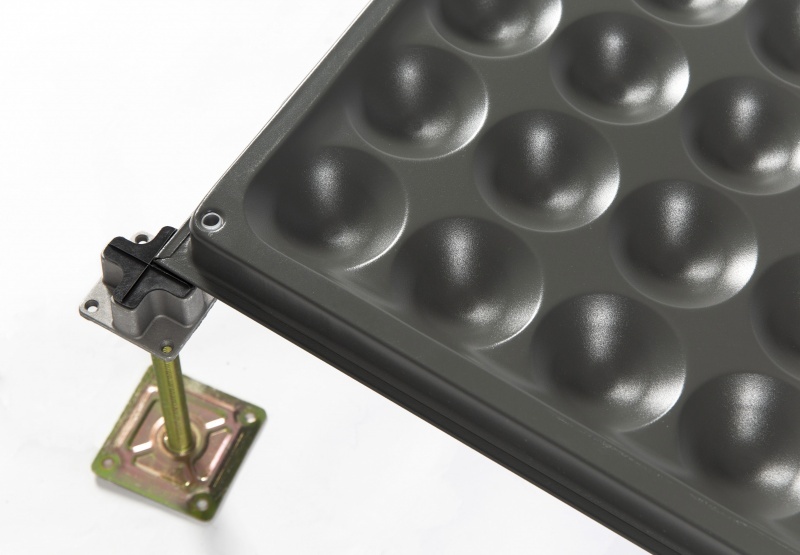

Steel Access Floor is specially designed for modern office buildings. The application of these panels will create a more comfortable, neat and efficient office environment. The panels can be easily installed onto the aluminum head pedestals. The panels’ sizes are controlled with great precision, which assures the free interchange between panels. With convenient wire layout and various outlet boxes, the system will optimize the cabling in offices.

type		Static Loading			DynamicLoading			Ultimate Load
		ConcentratedLoad (N)		Uniform Load (N/m)	Rolling Load		Impact Load
					10.000passes
FS700		3115		14300	2300		450	9950
FS800		3560		16400	2450		450	11200
FS1000		4450		24500	3760		680	14500
FS1250		5560		35050	4650		680	18360
FS1500		6675		39280	5760		680	22170
FS2000		8900		49100	6250		800	29420
Size		500*500+-0.3mm;600*600+-0.3mm; 609.4*609.4+-0.3mm
Flatness		<=0.5mm
