  • Top and Bottom with Galvanized Steel GRC floor
  • Top and Bottom with Galvanized Steel GRC floor
  • Top and Bottom with Galvanized Steel GRC floor
  • Top and Bottom with Galvanized Steel GRC floor
Top and Bottom with Galvanized Steel GRC floor Top and Bottom with Galvanized Steel GRC floor Top and Bottom with Galvanized Steel GRC floor Top and Bottom with Galvanized Steel GRC floor

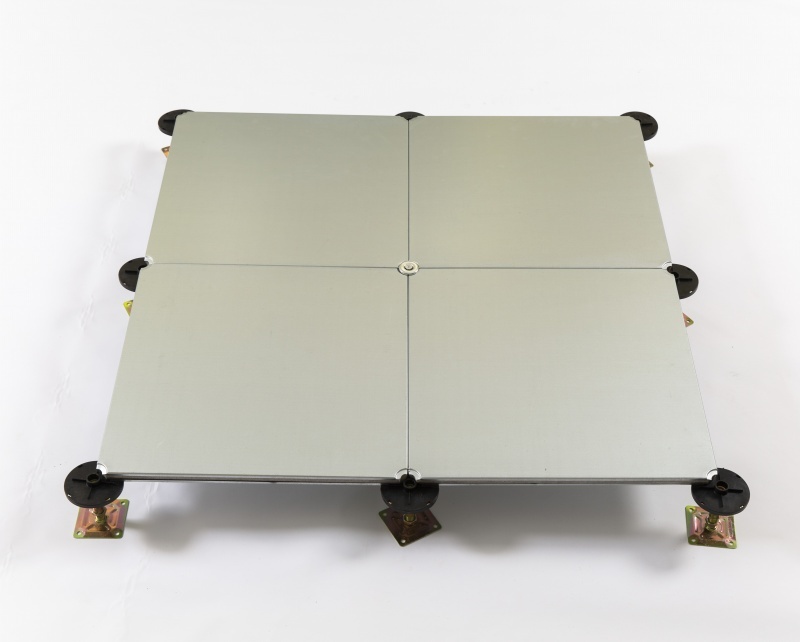

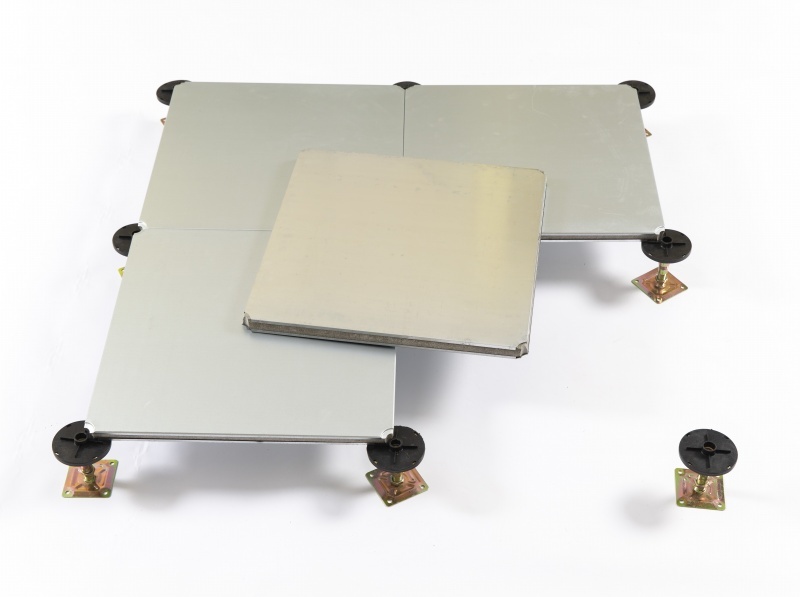

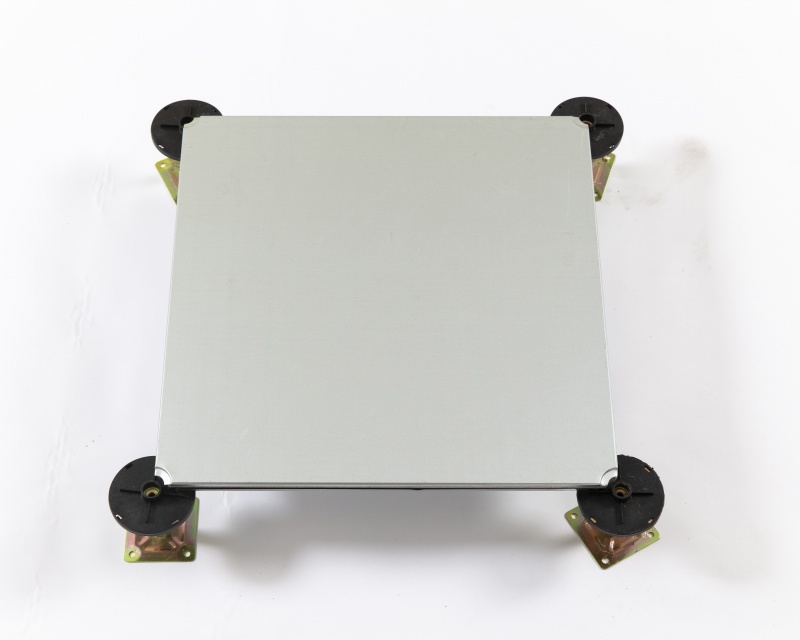

Top and Bottom with Galvanized Steel GRC floor

GRC floor  is made with cement as main material and fixed with reinforced fiber.Thus not only keep perfect fireproof performance but also improve panel loading capability.,and it is not only small but also light which is more convenient to be installed.Further more,it can lower loading pressed by access floor panel weight onto floor slab to keep floor slab last longer.
GRC  floor panel is light and thin and finish height can be adjusted,which increase utility rate of space below panels.Panels can be interchanged.Panel material is environmental and can be recycled and reused so that to protect environment

Product name
Top and Bottom with Galvanized Steel GRC Raised Floor

Scope of application
Widely used in 5A intelligent office buildings, conference rooms, electric classrooms, cultural and entertainment centers, star hotels and other places
Raise the altitude
50mm-200mm


Size

Concentrated

Impact load

Ultimate load

Uniform load



mm

N

N

N

Heavy duty

500x500x25

≥3000

3000

≥9000

Extra Heavy duty

500x500x25

≥5000

5000

≥15000
